| ? | Line module | Product classification | Product model |
|
? |
Primary rectification | Bridge Rectifiers | DB107S ?DB207S ??GBS2M ?TBF20M |
| Buffer circuit | Standard Recovery Rectifiers | 1N4007 ?1N5399 | |
| Fast Recovery Rectifiers | HER106G ?ES1J ?ES3JB ?HER206G ?HER208G | ||
| step-downDC/DC | LDO | PS1117-3.3 | |
| Feedback circuit | Photocouplers | BL817 ?BL817M BL1010H | |
| Adjustable Shunt Voltage Regulators | TL431 | ||
| Secondary rectifier 5V output | Schottky Diodes | SB130 ?SB1100 | |
| Secondary rectifier 12V output | Schottky Diodes | SB3100 ?SB3200 ?SB5100 ?SB5200 | |
|
Outdoor unit of air conditioner |
Primary rectification | Bridge Rectifiers | GBU15M ???GBU25M |
| ???PFC Circuit | Fast Recovery Rectifiers | MUR3060 | |
| PFC bypass protection | Standard Recovery Rectifiers | 8A10 ?10A10 | |
| Buffer circuit | Standard Recovery Rectifiers | 1N4007 ?1N5399 | |
| Fast Recovery Rectifiers | HER106G ?ES1J ?ES3JB ?HER206G ?HER208G | ||
| step-downDC/DC | LDO | PS1117-3.3 | |
| Fan motor drive | Power MOSFETs | BL5N50D BL9N30F BL4N60F | |
| Primary switch | High voltage MOSFETs | BL6N80F ?BL7N80F ?BL3N90F | |
| Secondary rectifier 5V output | Schottky Diodes | SB360 SH36B | |
| Secondary rectifier 12V output | Schottky Diodes | SB3100 ?SB3200 ?SB5100 ?SB5200 ?SS310B SS3200B ?SS510B ?SS5200B | |
| Secondary rectifier 15V output | Schottky Diodes | SB1200 ?SB2200 ?SS3100B ?SS3200B |
Application Area
Menu

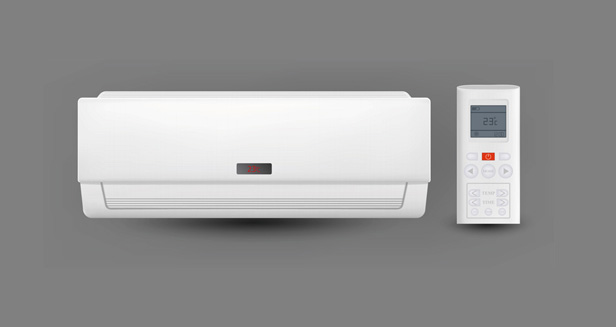

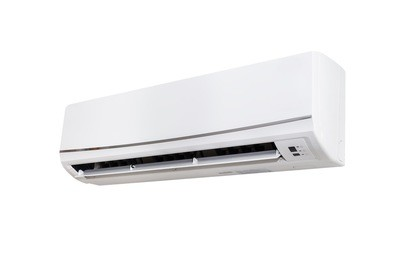

Indoor unit of air conditioner? ?.png)
