產(chǎn)品參數(shù)

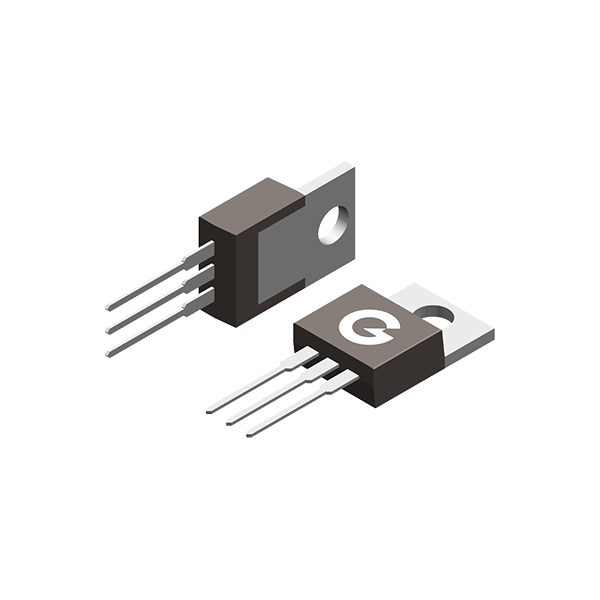

- Package: TO-220AB
- AEC Qualified: NO
- Pb Free: YES
- Halide free: YES
- Reach: YES
- RoHS: YES
- Marketing Status: Active
- Configuration: Single
- Channel Polarity: N
- ESD: Y
- TJ(°C) max.: 150
- TJ(°C) min.: -55
- PD(W) Max.: 125
- V(BR)DSS(V) Min.: 900
- VGS(V) Max.: ±20
- ID(A) Max.: 14
- IGSS(uA) Max.: ±1
- VGS(th)(V) Max.: 4
- RDS(on)(mΩ)@ 18VTyp.:
- RDS(on)(mΩ)@ 18VMax.:
- RDS(on)(mΩ)@ 15VTyp.:
- RDS(on)(mΩ)@ 15VMax.:
- RDS(on)(mΩ)@ 10V Typ.: 350
- RDS(on)(mΩ)@ 10V Max.: 450
- RDS(on)(mΩ)@ 6V Typ.:
- RDS(on)(mΩ)@ 6VMax.:
- RDS(on)(mΩ)@ 4.5V Typ.:
- RDS(on)(mΩ)@ 4.5V Max.:
- RDS(on)(mΩ)@ 2.5V Typ.:
- RDS(on)(mΩ)@ 2.5V Max.:
- RDS(on)(mΩ)@ 1.8V Typ.:
- RDS(on)(mΩ)@ 1.8V Max.:
- Qg(nc) Typ:
- @Vgs(V):
- ECCN(US): EAR99
- Category: 超結(jié)MOSFETs
